72V 3000W BLDC Motor Kit With brushless Controller For Electric Scooter E bike E-Car Engine Motorcycle Part

Best 72V 3000W BLDC Motor Kit With brushless Controller For Electric Scooter E bike E-Car Engine Motorcycle Part 0Clearance 72V 3000W BLDC Motor Kit With brushless Controller For Electric Scooter E bike E-Car Engine Motorcycle Part 1Cheap 72V 3000W BLDC Motor Kit With brushless Controller For Electric Scooter E bike E-Car Engine Motorcycle Part 2Clearance 72V 3000W BLDC Motor Kit With brushless Controller For Electric Scooter E bike E-Car Engine Motorcycle Part 3Best 72V 3000W BLDC Motor Kit With brushless Controller For Electric Scooter E bike E-Car Engine Motorcycle Part 4Flash Deal 72V 3000W BLDC Motor Kit With brushless Controller For Electric Scooter E bike E-Car Engine Motorcycle Part 5

  • Brand Name MEIANDIAN
  • Voltage 72V
  • Design Brushless
  • Wattage > 400w
  • Motor Type Brushless DC Motor
  • Rated power3000W 3000W
  • Torque/N.m 5.4
  • Motor Rated Torque/N.m speed 4900RPM/min max 5800RPM
  • Motor type MY1020
  • Sprocket T8F 11T Sprocket
  • Controller Type 24MOS 3000W 42-72V 60A
  • BLDC Speed Motor Controller Brushless controller 3000W
  • Use For Electric Scooter,E-bike,E-moto ,E-tricycle,E-car
  • Use e-scooter,electric scooter,ebike

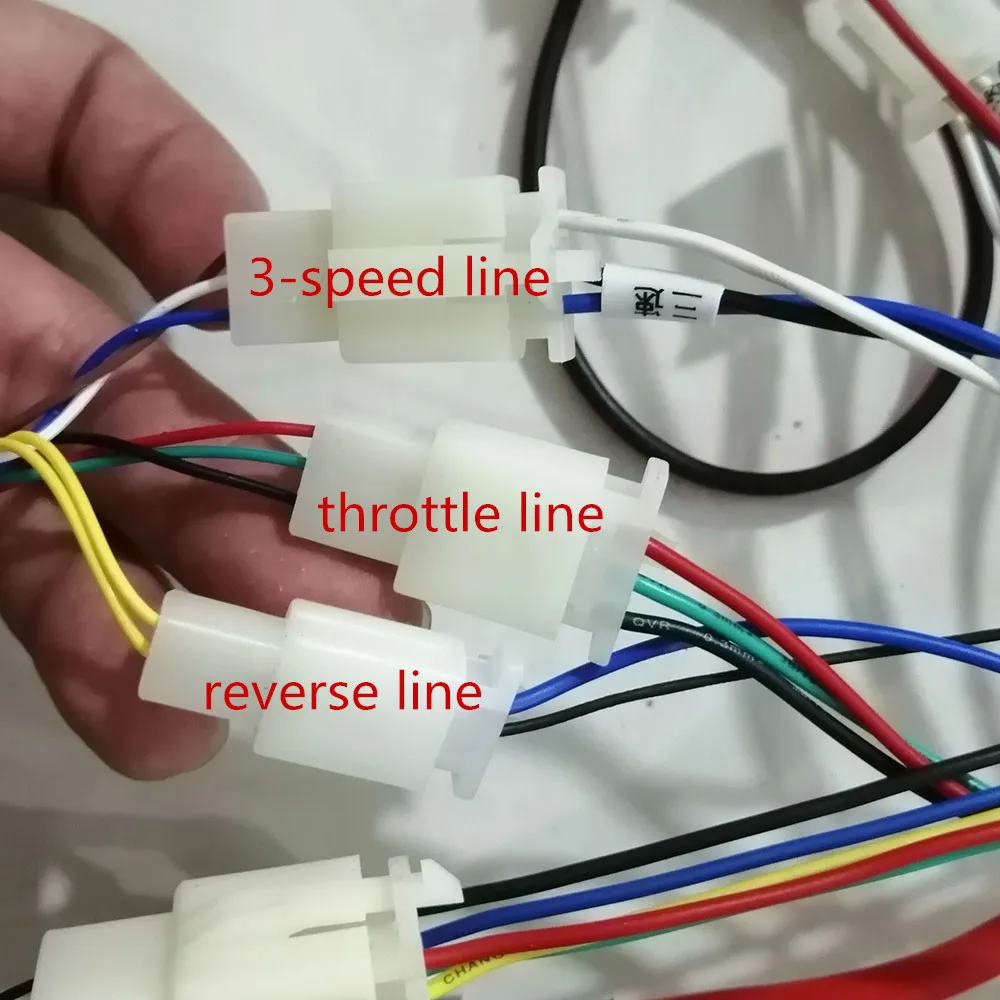

  • 72V 3000W Brushless Motor Kit With 24 Mosfet 50A Controller For Electric Scooter E bike E-Car Engine Motorcycle Part Note: This price does not include tariffs. When you have been placing a order, please tell us how much you need to declare? If you don't leave a message,We will write a fit value. Packing List 1. 1pcs 72v3000w brushless motor 2.1pcs 42-72v3000w 50A 24MOS Brushless Controller Products Details About Motor: 1.Model:KUNRAY MOTOR MY1020 2.Motor Type:High-Speed BLDC brushlessMotor 4.Out put /W:3000W 5.Rated Speed:4900r/min 5800RPM(MAX) 6.Weight:4.8KGS 7.Diameter:95mm 8.Rated Torque/N.m:5.4N.m 9.Applicable:Electric Scooter,Ebike,Folding Bike,Small E-Moto,machine,MIni Electric Car ,DIY 11.Installation: Center,MID DRIVE 12.Application Chain:T8F Sprockt /Chain About Controller: 1.Power:3000w 2.Voltage:42-72V DC 3.Current:50A 4.Mosfet:24WF 5.Under Voltage turn the 1.1-3.7V 6.Brake Low Level Note: We can not provideInstallation guide, we can provide motor and controller wire diagram ONLY!( below have wire diagram ,for reference only) THIS MODEL MOTOR HAVE WITH FOOT MOEL,also HAVE OTHER POWE LIKE:36V350W 500W 1000W / 48V 1000W 2000W / 60V 2000W 2500W / 72V 2000W 3000W IF NEED CAN CONTACT WITH US!!!HAVE IN STOCK !!! Wire Diagram: 1.Connect the motor phase to ControllerPhase (Color to color) 2. Connect the Throttle Wire: Red Wire: + Black Wire:- Green Wire: Singal 3.Connect the Hall Wire.Controller Hall To Motor Hall Wire .(Color to color) The Small White Wire is Self-study Wire. (Connect eachother) 4.Conncet the Power lock Wire.(withoutignition key ,can connect the power lock wire to itself)open the power lock. 5.open the battery ,turn on the throttle ,motor will be working. Note: when motor reverse ,close the self-study wire when motor stop ,connect the self-study wire again , then motor willl bePositive rotation. Let the motor working about 10 seconds ,cut off the self0study wire ,cut off the power lock wire about 10 second too. thenThe controller will automatically save the program. 6.Then canuse other function wire. 72V 3000W brushless controller function: 1. motor line 2. battery + 3. Cruise line 4. throttle line 5. self-learning line 6. Anti-theft power line 7. Anti-theft alarm line 8. hall line 9. 3-speed line(low/Medium/high) 10. instrumentation line 11. electric lock line 12. low brake 13. high brake 14. reverse line 15. battery - (1.Contact the motor line 2. Contact the hall line 3.contact the throttle line 4.contact the electric lock line 5.Contact the battery line(red:+ , black:-) 6.Docking the two self-learning lines, twist throttle, the wheel will forward or reverse. (1.if wheel forward ,Separate the self-learning line. 2.if wheel reverse, Separate the self-learning line. then Docking the self-learning line again. if wheel forward ,Separate the self-learning line.) 7.other functions can be connected as needed.) Best 72V 3000W BLDC Motor Kit With brushless Controller For Electric Scooter E bike E-Car Engine Motorcycle Part 0Excellent 72V 3000W BLDC Motor Kit With brushless Controller For Electric Scooter E bike E-Car Engine Motorcycle Part 1Discount 72V 3000W BLDC Motor Kit With brushless Controller For Electric Scooter E bike E-Car Engine Motorcycle Part 2Best 72V 3000W BLDC Motor Kit With brushless Controller For Electric Scooter E bike E-Car Engine Motorcycle Part 3Flash Deal 72V 3000W BLDC Motor Kit With brushless Controller For Electric Scooter E bike E-Car Engine Motorcycle Part 4Excellent 72V 3000W BLDC Motor Kit With brushless Controller For Electric Scooter E bike E-Car Engine Motorcycle Part 5Flash Deal 72V 3000W BLDC Motor Kit With brushless Controller For Electric Scooter E bike E-Car Engine Motorcycle Part 6Sale 72V 3000W BLDC Motor Kit With brushless Controller For Electric Scooter E bike E-Car Engine Motorcycle Part 7Top 72V 3000W BLDC Motor Kit With brushless Controller For Electric Scooter E bike E-Car Engine Motorcycle Part 8
